17-7PH Stainless Steel Sheet, Plate & Coil – AMS 5528, UNS S17700

17-7 PH is a precipitation-hardened stainless steel that is well suited for  aerospace and other applications requiring high strength and good corrosion resistance and formability.  Type 17-7PH is a Chromium-Nickel-Aluminum, austenitic stainless steel.  It is the most formable of all PH grades and has the highest strength and hardness.  It is less magnetic than other PH grades and offers minimal distortion upon heat treatment. This material maintains its valuable properties at temperatures up to 800° F (427° C).

Inquiry
Categories: ,
Description

17-7PH Chemical Composition


Element Percent By Weight
Type 17-7ph
C Carbon 0.09 maximum
Mn Manganese 1.00 maximum
P Phosphorus 0.05 maximum
S Sulfur 0.03 maximum
Si Silicon 1.00 maximum
Cr Chromium 16.00 – 18.00
Ni Nickel 6.75 – 7.75
Al Aluminum 0.75 – 1.50

Common Applications of 17-7 PH Stainless Steel

  • Aerospace applications
  • Chemical processing equipment
  • Oil and petroleum refining equipment
  • Food grade stainless steel for processing equipment
  • General metalworking

Standard Inventory Specifications

  • UNS S17700
  • AMS 5528
  • ASTM A 693
  • ASME SA 693
  • W.NR 1.4541
  • PWA-LCS
  • GE-S400/1000
  • RR SABRe Edition 2
  • DFARS Compliant
  • SAE AMS 5528

Common Trade Names

  • 17-7 (® AK Steel)
  • ATI 17-7 (™ Allegheny Technologies)
  • T-17-7 Stainless Steel (ThyssenKrupp VDM)

Inventory Size Range

  • Sheet : 0.018″ – 0.187″
  • Plate : 0.018″ – 0.187″

7-7PH Physical Properties

  • Melting Range: 2560-2625°F (1404-1440°C)
  • Density: 0.2820 lb/in³

Mean Coefficient of Thermal Expansion (Annealed Condition)


Temperature Range Mean Coefficient of Thermal Expansion
°C °F μm/m°C in/in/°F·10⁶
21-93 70-200 15.3 8.5
21-204 70-400 16.2 9.0
21-316 70-600 17.1 9.5
21-427 70-800 17.3 9.6

Thermal Conductivity (TH 1050 Condition)


Temperature Range Coefficients
°C °F W/m·K Btu/(hr/ft²/in/°F)
149 300 16.87 117
260 500 18.46 128
449 840 21.05 146
482 900 21.05 146

Magnetic Permeability (Annealed Condition)


Oersteds AT/m μ
25 1989 1.4 – 3.4
50 3878 1.4 – 3.6
100 7956 1.4 – 3.5
200 15.912 1.4 – 3.2
max max 1.4 – 3.6

Electrical Resistivity (Annealed Condition)

  • Microhm-cm: 80



Mechanical Properties and Yield Strength of 17-7PH

Room Temperatures (Annealed)

  • Ultimate Tensile Strength psi (MPa): 130,000 (896)
  • 0.2% Tensile Yield Strength psi (MPa): 40,000 (276)
  • Elongation % in 2″ (50mm): 35
  • Hardness Rockwell: B85

Related products

15-5 PH Stainless Steel Bar – AMS 5659

15-5 stainless steel is a martensitic, precipitation-hardening material with chromium, nickel and copper.  It is often a first choice in the aerospace industry for fasteners and structural components.  Its unique structure provides increased toughness and better corrosion resistance than its predecessor, 17-4 PH.  Both inclusion control and a minimized amount of delta ferrite as compared to 17-4 stainless steel contribute to the greater toughness of 15-5.  The alloy is further strengthened by a low temperature heat treatment which precipitates a copper containing phase in the alloy.  15-5 PH is able to meet the stringent mechanical properties required in the aerospace and nuclear industries.
Quick view

17-4PH Stainless Steel Sheet, Coil and Plate – AMS 5604, UNS S17400

17-4 PH is a martensitic, chromium-nickel-copper precipitation-hardening stainless steel. 17-4 PH stainless steel is capable of attaining a wide range of strength and toughness properties depending on the precipitation or aging temperature used in hardening.  Its valuable combination of  high strength, good corrosion resistance and toughness in both base metals and welds gives designers opportunities to add reliability to their products while simplifying fabrication and often reducing costs. High strength is maintained to approximately 600°F (316°C). This material has good resistance to stress corrosion cracking in the lower strength conditions.
Quick view

310H Stainless Steel

Our inventory now includes 310H Plate and Processed Flat Bar (Alloy 310H UNS S31009), ideally suited for high-temperature applications such as heat treatment and chemical processing equipment. Alloy 310H (UNS S31009) has a carbon content restricted to exclude the lower end of the 310 range. This makes 310H the grade of choice for high temperature applications. This steel has good resistance to oxidation at temperatures of up to 1040°C (1904°F) in intermittent service and 1150°C (2102°F) in continuous service. It is widely used in environments where sulfur dioxide gas is present at high temperatures; however it is recommended that this steel should not be continuously used at 425-860°C (797-1580°F) range due to carbide precipitation.
Quick view

321 Stainless Steel Round bar

We are stockholders and suppliers, delivering to the whole of the India. Stainless steel grades are stocked in round bar, flat bar and plate (plasma cut)., We are one of the INDIA's largest independent stainless steel stockholders and suppliers of heat resistant grade 321 / 321H round bar.At our factory in Mumbai, grade 321 / 321H round bar is available off the shelf for imediate dispatch in all sizes starting from 3mm diameter. Material can be supplied in standard stock lengths or cut to length.
Quick view

SS 201 Sheets & Plates

Product Specification

Thickness 0-1 mm, 1-2 mm, 2-3 mm, 3-4 mm, 4-5 mm or as per requirement
Type Sheets & Plates
Usage/Application Industrial, Construction, Pharmaceutical Industry
Sheet Size As Per Requirement
Certification ISO
Place Of Origin India
Quick view

SS 321 / 321H Sheets & Plates

Stainless Steel 347-347H Sheets Plates in India. They provide high-quality stainless steel sheets and plates at affordable rates. These sheets and plates are available in a wide range of customized size, shapes, thickness and dimensions. These grades of stainless steel are useful in a harsh environment under tough conditions. We manufacture this sheet and plate by using the advanced technology under the supervision of our skilled worker team.
Quick view

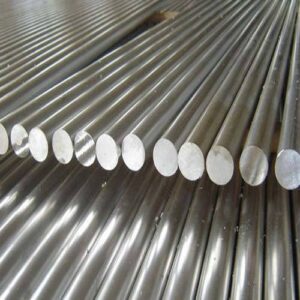

Stainless Steel 904L Round Bar

ALLOY 904L DESCRIPTION AND APPLICATION; 904L is a high alloy austenitic stainless steel used to weld base metal of similar composition and with its extra low residual elements such as C, Si, S, P, and N improves the weld metal from hot cracking & fissuring. 904L with it 20% Cr, 25% Ni, 4.5% Mo and 1.5% Cu is often found to manufacture or repair processing equipment, tanks, vessels, and piping that handles acetic & sulfuric acids and other chlorides. Also used for joining 317L & 904L to 304 or 316 where added corrosion resistance is needed. Ar + 30% He + 1-3 % CO2 recommended. We are Manufacturers & Suppliers of UNS N08904 Round Bars . The company plant is equipped with a range of machines and advanced processing facilities that give tremendous flexibility to meet the exact needs of our clients.We are has Become No 1 Stainless Steel 904L Cold Finish Round Bar Exporter in India, We are Largest Stainless Steel 904L Cold Drawn & Polished Square Bars Distributors. We are Known as Stainless Steel 904L Hexagonal Bar Stockist. We have Become Fourth Largest Stainless Steel 904L Welding Rod Stockholder,Stainless Steel 904L Hollow Bar Wholesaler. we are producing WNR 1.4539 Bars Suppliers in a variety of shapes and sizes. The company is the foremost producer of Bright bars in India which compare with the finest in the world. We process almost all popular grades in various national and International specifications.
Quick view

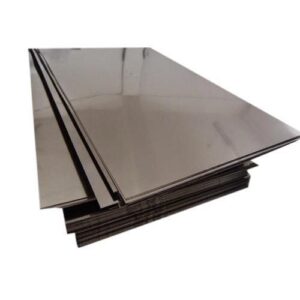

Stainless Steel Sheet & Plates
