C18150 copper rod

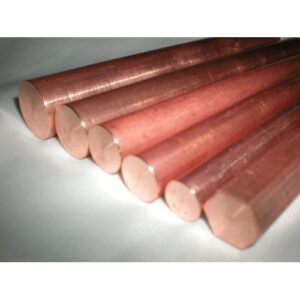

C18000 Copper Rod

We are C18000 Copper Rod Manufacturer. We maintain stock of C18000 Copper Rod.
We manufacture C18000 copper round bar, rods, bar, round bar, hex bar, square bar, flat bar, hexagon bar, hexagonal bar, rounds, hot rolled bar, cold rolled bar, cold drawn bar, bright bar, billets in India.

Inquiry
Categories: ,
Description
Specification of C18000 Copper Rod
Standard & Material
C18000 Copper
HOLLOW RODS
Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS
8mm To 100 mm
HEX
10mm To 60mm
SQUARE
10mm To 60mm
FLAT
10mm Min Thickness and max Width 120mm
BILLETS
Up to 200 mm
INGOTS
As per Specification

C18000 Copper Chromium Nickel, UNS C18000 Copper Chromium Nickel, Copper Nickel Silicon Suppliers.

Chemical Composition of C18000 Copper Rod
Cr
Cu
Fe
Ni
Si
Min/Max
0.10 – 0.8
Rem
0.15
1.8 – 3.0
0.4 – 0.8
Nominals
0.45
–
–
2.4
0.6



Physical Properties of C18000 Copper Rod
Product Property
US Customary
Coefficient of Thermal Expansion
9.7 ppm/°F (17.5 ppm/°C)
Coefficient of Thermal Expansion
Density
.318 lb/in3 (8.81 g/cm3)
Electrical Conductivity
45% IACS (26 MS/m) minimum
Electrical Resistivity
Melting Point Liquid US
Melting Point Solid US
1900°F (1040°C)
Modulas of Elasticity in Tension
18.5×106 psi (128 GPa)
Modulas of Rigidity
Specific Gravity
Specific Heat Capacity
at 70°F (20°C) – 0.092 BTU/lb °F (385 J/kg K)
Thermal Conductivity
at 212°F (100°C) – 120 BTU/hr ft °F (208 W/m K)



Applications of C18000 Copper Rod
  • Sprue Bushing
  • Cavities for Injection Molds
  • Pinch Offs
  • Mold Cavities for Bold Molds
  • Blow Pins
  • Hot runner Systems for Injection Molds
  • Resistance Welding Tips, Wheels and Fixtures
  • Stud Welding Collets and Tips
  • Pinch Offs
  • Mold Cavities for Bold Molds
  • Cores, Core and Ejector Pins for Injection Molds
  • Plunger Tips for Metal Die Casting Machines
  • Heat Sink Inserts in Steel Plastic Molds
  • Welding Dies for Wire and Flash
  • Blow Pins
