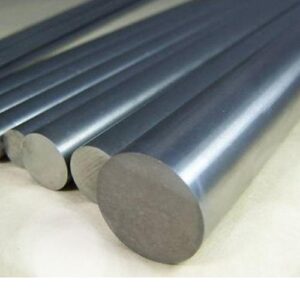

Monel Round Bar Specifications or Monel 400 Material Specification
| Standards | : | ASTM / ASME |
| Designation | : | Astm B164, SB 164 |
| Size | : | 1/2″ to 24″ |
| Grade | : | Monel 400 (UNS No. N04400) Round Bars & Rods |
| Form | : | Round, Square, Hex (A/F), Bush, Rectangle, Flat, Billet, Ingot, Forging, PSQ Bar, Wire Rod, Wire (Coil Form), Wire-mesh etc. |
Monel Equivalent
| STANDARD | UNS | WERKSTOFF NR. | EN | BS | GOST | JIS | AFNOR |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NiCu30Fe | NA 13 | МНЖМц 28-2,5-1,5 | NW 4400 | NU-30M |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Specifications – Monel 400 Specs
| BAR | ROD |
|---|---|
| AMS 4676 | AMS 4676 |
Monel 400 Material Chemical Composition
| GRADE | NI | FE | C | MN | SI | CU | AL | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
K400 – K-Monel Chemical Composition
| NI | CU | AL | TI | C | MN | FE | S | SI |
|---|---|---|---|---|---|---|---|---|
| 63.0-70.0 | Remainder | 2.30-3.15 | .35-.85 | .25 max | 1.5 max | 2.0 max | .01 max | .50 max |
400 Monel Mechanical Properties
| DENSITY | MELTING POINT | TENSILE STRENGTH | YIELD STRENGTH (0.2%OFFSET) | ELONGATION |
|---|---|---|---|---|
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
